Regulators

Air line regulators provide controlled, consistent air pressure as required for specific pneumatic equipment connect to the air system. All ARO-Flo regulators are offered with a standard adjustment range of 0 - 140 psig (0 - 9.6 barg). Alternative spring ranges are offered for easy conversion to suit different requirements. Non-relieving regulators are offered for applications where the venting of downstream overpressure is undesirable.

Items in Regulators
Item
THREAD SIZE SERIES PRESSURE RANGE GAUGE INCLUDED AIR FLOW
1/4" Module/Air 1500 Series Regulator with Gauge
Item R-37221-600T
THREAD SIZE 1/4" SERIES 1500 PRESSURE RANGE 0 TO 140 PSI GAUGE INCLUDED YES AIR FLOW 86 CFM
1/4" Module/Air 1000 Series Regulator
Item R37121-100
THREAD SIZE 1/4" SERIES 1000 PRESSURE RANGE 0 TO 140 PSI GAUGE INCLUDED NO AIR FLOW 59 CFM
1/4" Module/Air 2000 Series Regulator
Item R37221-100
THREAD SIZE 1/4" SERIES 1500 PRESSURE RANGE 0 TO 140 PSI GAUGE INCLUDED NO AIR FLOW 86 CFM
1/4" Module/Air 1500 Series Regulator
Item R37221-200
THREAD SIZE 1/4" SERIES 1500 PRESSURE RANGE 0 TO 140 PSI GAUGE INCLUDED NO AIR FLOW 86 CFM
3/8" Module/Air 1500 Series Regulator with Gauge
Item R37231-600
THREAD SIZE 3/8" SERIES 1500 PRESSURE RANGE 0 TO 140 PSI GAUGE INCLUDED YES AIR FLOW 113 CFM

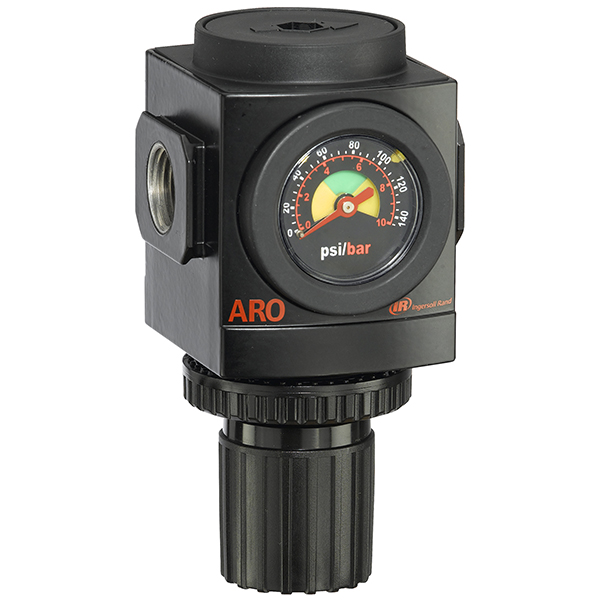

3/8" Module/Air 2000 Series Regulator with Gauge
Item R37331-600
THREAD SIZE 3/8" SERIES 2000 PRESSURE RANGE 0 TO 140 PSI GAUGE INCLUDED YES AIR FLOW 179 CFM
1/2" Module/Air 2000 Series Regulator
Item R37341-100
THREAD SIZE 1/2" SERIES 2000 PRESSURE RANGE 0 TO 140 PSI GAUGE INCLUDED NO AIR FLOW 210 CFM
1/2" Module/Air 2000 Series Regulator with Gauge
Item R37341-600
THREAD SIZE 1/2" SERIES 2000 PRESSURE RANGE 0 TO 140 PSI GAUGE INCLUDED YES AIR FLOW 210 CFM
3/4" Module/Air 2000 Series Heavy-Duty Relieving Regulator
Item R37351-100
THREAD SIZE 3/4" SERIES 2000 PRESSURE RANGE 0 TO 140 PSI GAUGE INCLUDED NO AIR FLOW 210 CFM
