Antifreeze/ Windshield Wash Diaphragm Pumps
Antifreeze/ Windshield Wash Diaphragm Pumps
Click to enlarge

Antifreeze/ Windshield Wash Diaphragm Pumps

  • PATENTED AIR VALVE: ARO's patented "unbalanced" air valve design eliminates stalling, a common occurrence in competitive pumps
  • HI-FLOW: These pumps offer high-volume delivery of material even at low air pressures
  • RUNS DRY: ARO diaphragm pumps can run dry without any damage to the pump
  • BOLTED CONSTRUCTION: Pumps feature bolted construction to avoid the proven problems created by band clamp type pump fasteners
  • LUBE-FREE AIR MOTOR: ARO diaphragm pumps are pre-lubricated. They do not require an air lubricator, eliminating maintenance concerns. (The use of a lubricator is not recommended.)
  • VARIABLE FLOW RATE: Adjusting the air pressure to the pump allows precise control over the pump's flow rate without damaging the pump
  • SIMPLE DESIGN: Provides trouble-free operation and virtually maintenance-free performance
  • VARIETY: ARO diaphragm pumps are available in metallic and composite bodies, single and multiple-port designs, and many different ball, seat, and diaphragm configurations to suit your application
Items in Antifreeze/ Windshield Wash Diaphragm Pumps
Item
BALL DIAPHRAGM & O-RING BODY AIR INLET (F) MATERIAL INLET & OUTLET (F) MAXIMUM PSI GPM MAX
Item 650715-C
BALL ACETAL DIAPHRAGM & O-RING NITRILE BODY ALUMINUM AIR INLET (F) 1/2" MATERIAL INLET & OUTLET (F) 1-1/2" (I) X 1"(O) MAXIMUM PSI 120 PSI GPM MAX 35 GPM

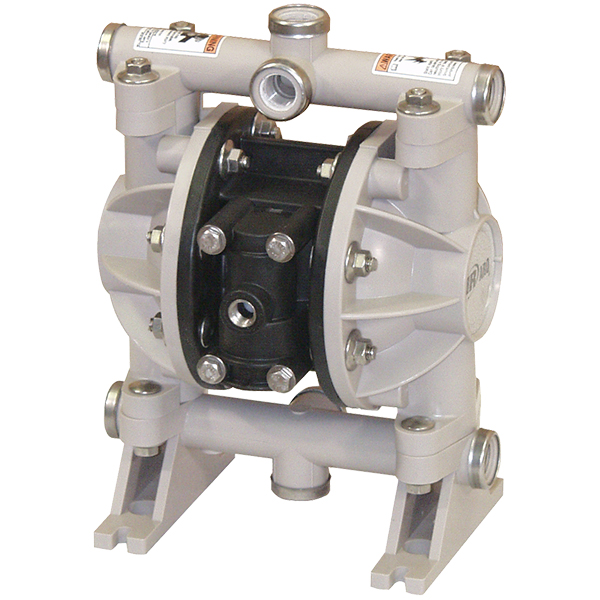

Item 66605J-322
BALL HYTREL DIAPHRAGM & O-RING HYTREL BODY POLYPROPYLENE AIR INLET (F) 1/4" MATERIAL INLET & OUTLET (F) 1/2" MAXIMUM PSI 100 PSI GPM MAX 13 GPM
BALL HYTREL DIAPHRAGM & O-RING HYTREL BODY ALUMINUM AIR INLET (F) 1/4" MATERIAL INLET & OUTLET (F) 1" MAXIMUM PSI 120 PSI GPM MAX 35 GPM
BALL SANTOPRENE DIAPHRAGM & O-RING SANTOPRENE BODY POLYPROPYLENE AIR INLET (F) 1/4" MATERIAL INLET & OUTLET (F) 3/8" MAXIMUM PSI 100 PSI GPM MAX 10.6 GPM
