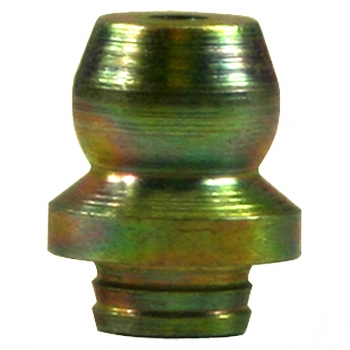

Drive type fittings are most commonly used in high volume installations to avoid tapping costs. The serrated shank holds the fitting securely in place when driven into a hole. All drive fittings have a yellow zinc finish and can withstand a 70-hour salt spray test. Actual drill size may depend upon the nature of the material into which the fitting is driven.

Items in Drive Type
Item
TYPE THREAD SIZE LENGTH
Item DR-14
TYPE STRAIGHT THREAD SIZE 1/4" LENGTH .50"
Item DR-14-NB
TYPE STRAIGHT THREAD SIZE 1/4" LENGTH .41"
Item DR-316
TYPE STRAIGHT THREAD SIZE 3/16" LENGTH .50"
Item DR-316-NB
TYPE STRAIGHT THREAD SIZE 3/16" LENGTH .50"
Item DR-316-NB2
TYPE STRAIGHT THREAD SIZE 3/16" LENGTH .49"
Item DR-516
TYPE STRAIGHT THREAD SIZE 5/16" LENGTH .58"
Item T-7602
TYPE STRAIGHT THREAD SIZE 1/4" LENGTH .51"
Item T-7603
TYPE STRAIGHT THREAD SIZE 3/16" LENGTH .47"
Item T-7604
TYPE STRAIGHT THREAD SIZE 3/16" LENGTH .49"
Item T-7605
TYPE STRAIGHT THREAD SIZE 3/16" LENGTH .50"
Item T-7616
TYPE STRAIGHT THREAD SIZE 8MM LENGTH .61"
Item T-7606
TYPE STRAIGHT THREAD SIZE 3/16" LENGTH .50"
Item T-7607
TYPE STRAIGHT THREAD SIZE 1/4" LENGTH .41"
Item T-7608
TYPE STRAIGHT THREAD SIZE 1/4" LENGTH .50"
Item T-7609
TYPE STRAIGHT THREAD SIZE 5/16" LENGTH .58"
Item T-7614
TYPE 65 DEGREE THREAD SIZE 1/4" LENGTH .85"
Item T-7615
TYPE STRAIGHT THREAD SIZE 6MM LENGTH .57"
Item T-7619
TYPE STRAIGHT THREAD SIZE 1/8" LENGTH .47"
Item T-7630
TYPE STRAIGHT THREAD SIZE 3/16" LENGTH .39"
Item T-7633
TYPE STRAIGHT THREAD SIZE 1/4" LENGTH .50"
