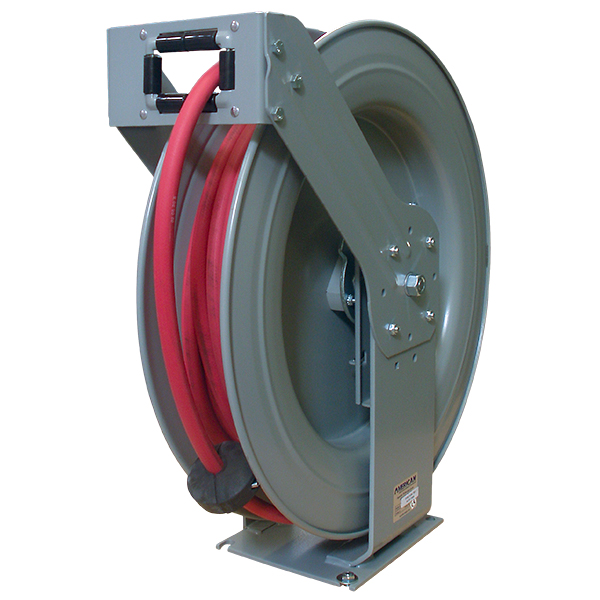

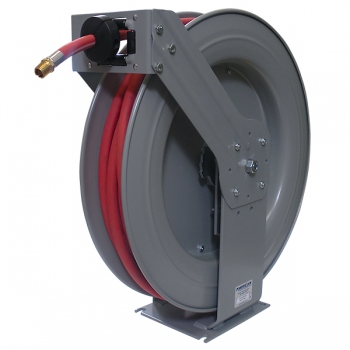

Platinum Double Arm Air/Water Hose Reels
Platinum Double Arm Air/Water Hose Reels
Click to enlarge

Platinum Double Arm Air/Water Hose Reels

DOUBLE-ARM CONSTRUCTION
Reel is supported on both sides by pedestal style base and arm guides

ENCLOSED SPRING
Cartridge style spring motor is packed with grease and fully enclosed for extra safety. Springs are factory balanced for each size reel

MOUNTING FLEXIBILITY
Multi-position guide arm is easily adjusted for ceiling, floor, wall, tank or truck mounting

TRIPLE SUPPORT
Reel axle is independently supported in three separate places and has self-lubricating bearings

STRENGTH BEADS
Reels are constructed with strength beads for added rigidity

ROLLED-EDGE
Hubs are constructed of heavy gauge steel with rolled edges for extra strength and maximum protection

RIGID CONSTRUCTION
Base plate and support post are built from heavy 1/4" plate steel to reduce flexing and fatigue

LATCH-OUT PREVENTION
Hose reels can be installed to prevent "latch-out" or locked reel syndrome

HI-FLOW SWIVEL
Lead-free Hi-Flow swivel allows maximum product delivery. Swivel O-ring seals are supported by Teflon® backup rings for added durability

DURABLE FINISH
All Platinum Series reels are power-coated grey for increased durability

Items in Platinum Double Arm Air/Water Hose Reels
Item
FOR USE ON HOSE SIZE MAXIMUM PSI DELIVERY HOSE HOSE STOP INLET WEIGHT
FOR USE ON AIR, WATER, WWS HOSE SIZE 3/8" X 100' MAXIMUM PSI 300 PSI DELIVERY HOSE TIM-4216-100F HOSE STOP TIM-131-3 INLET 3/8"(F) WEIGHT 85 LBS
FOR USE ON AIR, WATER, WWS HOSE SIZE 3/8" X 75' MAXIMUM PSI 300 PSI DELIVERY HOSE TIM-4216-75F HOSE STOP TIM-131-3 INLET 3/8"(F) WEIGHT 75 LBS
FOR USE ON AIR, WATER, WWS HOSE SIZE 1/2" X 100' MAXIMUM PSI 300 PSI DELIVERY HOSE TIM-4208-100F HOSE STOP TIM-131-4 INLET 1/2"(F) WEIGHT 95 LBS
FOR USE ON AIR, WATER, WWS HOSE SIZE 1/2" X 75' MAXIMUM PSI 300 PSI DELIVERY HOSE TIM-4208-75 HOSE STOP TIM-131-4 INLET 1/2"(F) WEIGHT 82 LBS
