In-Line Meters
In-Line Meters
Click to enlarge

In-Line Meters

In-line fluid meters allow for easy monitoring of fluid dispensing. The following digital electronic meters include two (2) 1.5V "N" style batteries (AAA batteries). Accuracy within the flow range is ± .5%, and repeatability is ± .2%. All meters except 1/2" version include inlet filter screen.

Items in In-Line Meters
Item
TYPE INLET/ OUTLET FLUID COMPATIBILITY METERED UNITS TOTALIZER UNITS WORKING FLOW RATE MAXIMUM PSI

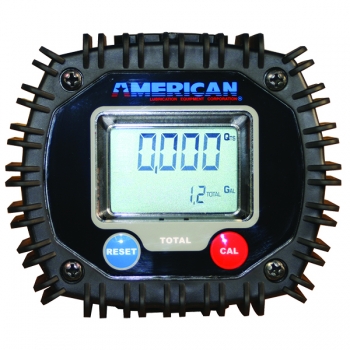

Stationary Digital Oil Meter Field Replaceable Electronics, 1/2" NPT (F) Inlet/Outlet
Item TIM-615
TYPE DIGITAL INLET/ OUTLET 1/2" NPT (F) FLUID COMPATIBILITY FLUID LUBRICANTS METERED UNITS PTS/QTS/ LTS/GALS TOTALIZER UNITS LITERS/ GALLONS WORKING FLOW RATE 1 TO 32 QTS/MIN MAXIMUM PSI 1,000 PSI

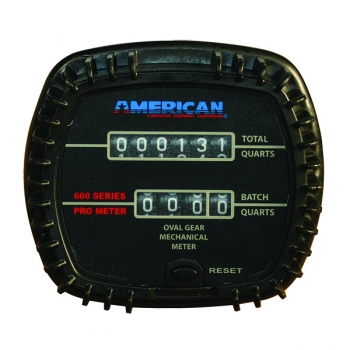

Stationary Mechanical Oil Meter with Odometer Readout, 1/2" NPT (F) Inlet/Outlet
Item TIM-616
TYPE MECHANICAL INLET/ OUTLET 1/2"(F) FLUID COMPATIBILITY FLUID LUBRICANTS METERED UNITS QUARTS TOTALIZER UNITS QUARTS WORKING FLOW RATE 1 TO 32 QTS/MIN MAXIMUM PSI 1,000 PSI

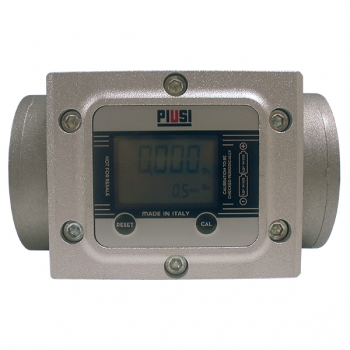

In-Line Digital Meter with 3/4" NPT (F) Inlet/Outlet
Item TIM-717-1
TYPE DIGITAL INLET/ OUTLET 3/4"(F) FLUID COMPATIBILITY LUBRICATING OILS, DIESEL FUEL METERED UNITS PTS/QTS/ LTS/GALS TOTALIZER UNITS GALLONS WORKING FLOW RATE 1.3 TO 13 GALS/MIN MAXIMUM PSI 1,000 PSI

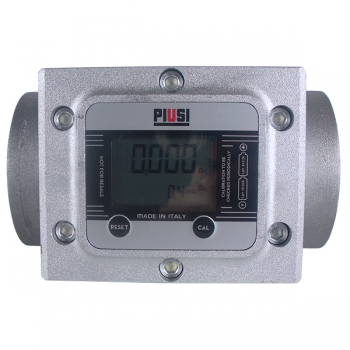

In-Line Digital Meter with 1"(F) Inlet/Outlet
Item TIM-717-2
TYPE DIGITAL INLET/ OUTLET 1"(F) FLUID COMPATIBILITY LUBRICATING OILS, DIESEL FUEL METERED UNITS PTS/QTS/ LTS/GALS TOTALIZER UNITS GALLONS WORKING FLOW RATE 2.6 TO 26 GALS/MIN MAXIMUM PSI 435 PSI

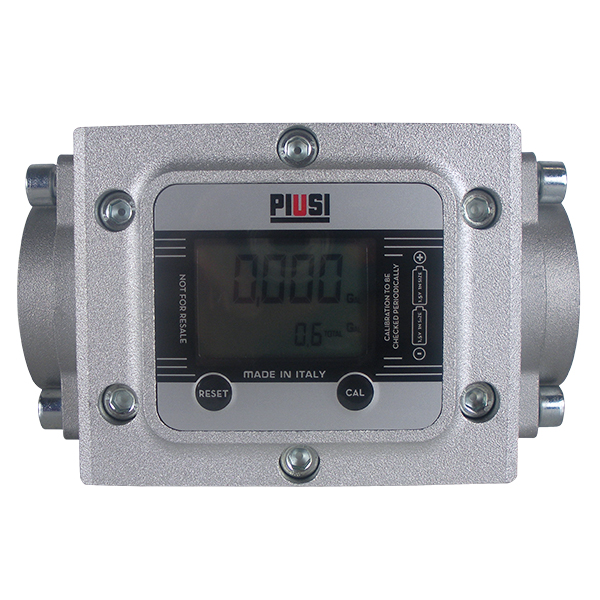

In-Line Digital Meter with 1-1/2" NPT (F) Inlet/Outlet
Item TIM-717-3
TYPE DIGITAL INLET/ OUTLET 1-1/2"(F) FLUID COMPATIBILITY LUBRICATING OILS, DIESEL FUEL METERED UNITS PTS/QTS/ LTS/GALS TOTALIZER UNITS GALLONS WORKING FLOW RATE 4 TO 40 GALS/MIN MAXIMUM PSI 290 PSI
