Digital Pro Series with Standard Control Valves
Digital Pro Series with Standard Control Valves
Click to enlarge

Digital Pro Series with Standard Control Valves

EXCLUSIVE DESIGN
This meter is built exclusively for American Lubrication Equipment Corporation incorporating numerous design ideas provided by their design team

FIELD REPAIRABLE
This design enables the user to replace the circuit board while the meter is installed under pressure

SUPERIOR DESIGN
Fluid is completely separated from the electronic head. The entire electronics head/puck is available as a replacement part

PROGRAMMABLE
All digital meters are programmable to Pints, Quarts, Liters and Gallons

BATTERIES
New AAA battery design lasts up to 3 times longer

SHOCK-RESISTANT
Rugged shock-resistant design stands up to the harshest environments. Meter covers have a molded-in soft rubber shock-guard for added protection

MODULAR ASSEMBLY
Swivel, control valve, meter and tip assembly are separate units which simplifies repair

FILTER
All Pro Series digital control valves have built-in filters for added protection

TRIGGER GUARD & LOCK
TIM-601 handles have a trigger lock to prevent accidental dispensing

3-YEAR LIMITED WARRANTY
All Pro Series digital control valves come with a 3-year limited warranty

FLUID COMPATIBILITY
Automatic Transmission Fluid, Gear Oil, Hydraulic Oil, Motor Oil, Synthetic Oil

Items in Digital Pro Series with Standard Control Valves
Item
METERED UNITS TOTALIZER UNITS TIP ASSEMBLY TIP ASSEMBLY DESCRIPTION TIP DIAMETER WORKING FLOW RATE
Item TIM-601-FA

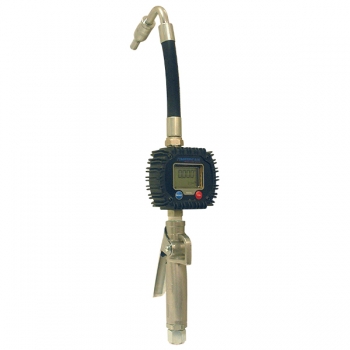

METERED UNITS PTS/QTS/ LTS/GALS TOTALIZER UNITS LTS/GALS TIP ASSEMBLY TIM-747 TIP ASSEMBLY DESCRIPTION FLEX AUTOMATIC TIP DIAMETER 1/2" WORKING FLOW RATE 2.5 GPM
Item TIM-601-FM

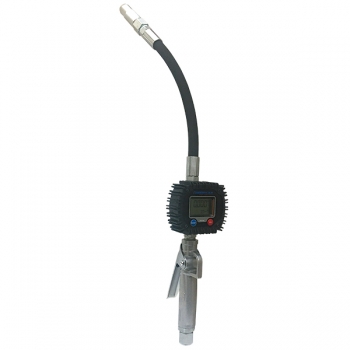

METERED UNITS PTS/QTS/ LTS/GALS TOTALIZER UNITS LTS/GALS TIP ASSEMBLY TIM-743 TIP ASSEMBLY DESCRIPTION FLEX MANUAL TIP DIAMETER 5/8" WORKING FLOW RATE 2.5 GPM
METERED UNITS PTS/QTS/ LTS/GALS TOTALIZER UNITS LTS/GALS TIP ASSEMBLY TIM-743-1 TIP ASSEMBLY DESCRIPTION FLEX MANUAL HI-FLOW TIP DIAMETER 15/16" WORKING FLOW RATE 4 GPM
Item TIM-601-RA

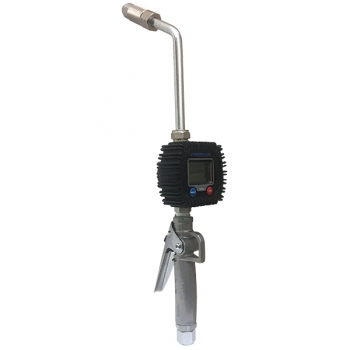

METERED UNITS PTS/QTS/ LTS/GALS TOTALIZER UNITS LTS/GALS TIP ASSEMBLY TIM-746 TIP ASSEMBLY DESCRIPTION RIGID AUTOMATIC TIP DIAMETER 1/2" WORKING FLOW RATE 2.5 GPM
Item TIM-601-RM

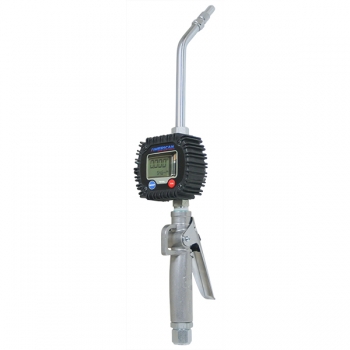

METERED UNITS PTS/QTS/ LTS/GALS TOTALIZER UNITS LTS/GALS TIP ASSEMBLY TIM-753 TIP ASSEMBLY DESCRIPTION RIGID MANUAL TIP DIAMETER 1/2" WORKING FLOW RATE 2.5 GPM

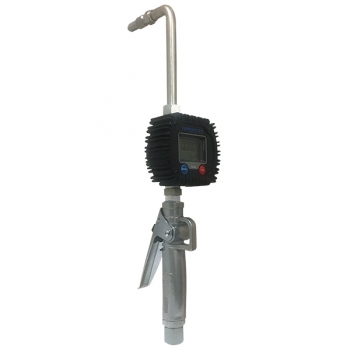

METERED UNITS PTS/QTS/ LTS/GALS TOTALIZER UNITS LTS/GALS TIP ASSEMBLY TIM-742 TIP ASSEMBLY DESCRIPTION 90 DEGREE RIGID MANUAL TIP DIAMETER 1/2" WORKING FLOW RATE 2.5 GPM

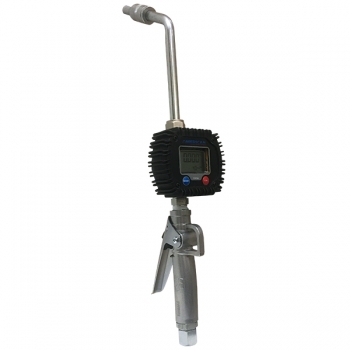

METERED UNITS PTS/QTS/ LTS/GALS TOTALIZER UNITS LTS/GALS TIP ASSEMBLY TIM-752 TIP ASSEMBLY DESCRIPTION RIGID MANUAL HI-FLOW TIP DIAMETER 15/16" WORKING FLOW RATE 4 GPM
