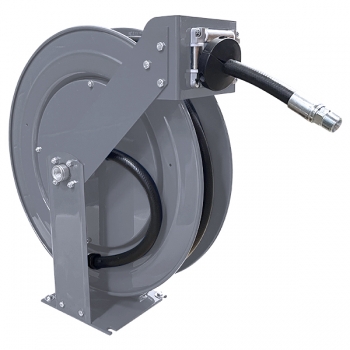

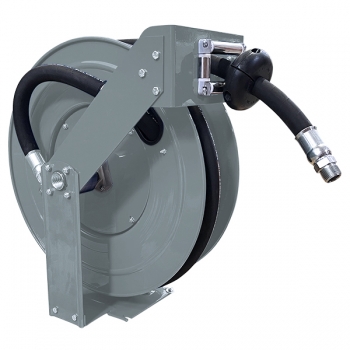

Platinum Double Arm Oil Hose Reels
Platinum Double Arm Oil Hose Reels
Click to enlarge

Platinum Double Arm Oil Hose Reels

DOUBLE-ARM CONSTRUCTION
Reel is supported on both sides by pedestal style base and arm guides

ENCLOSED SPRING
Cartridge style spring motor is packed with grease and fully enclosed for extra safety. Springs are factory balanced for each size reel

MOUNTING FLEXIBILITY

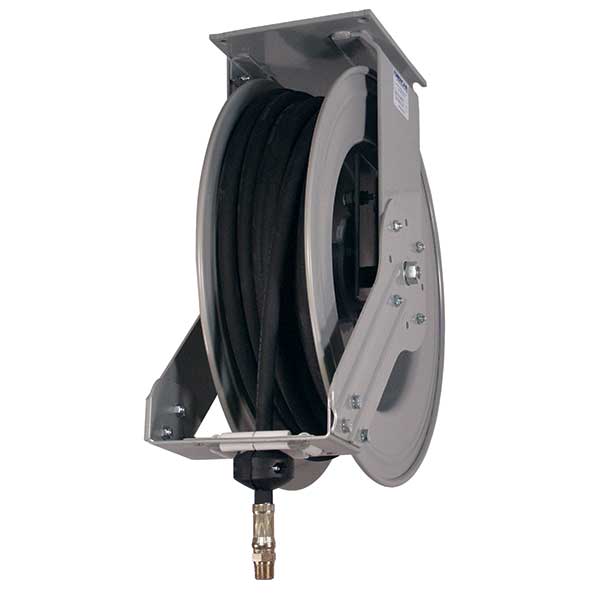

Multi-position guide arm is easily adjusted for ceiling, floor, wall, tank or truck mounting

TRIPLE SUPPORT
Reel axle is independently supported in three separate places and has self-lubricating bearings

STRENGTH BEADS
Reels are constructed with strength beads for added rigidity

ROLLED-EDGE
Hubs are constructed of heavy gauge steel with rolled edges for extra strength and maximum protection

RIGID CONSTRUCTION
Base plate and support post are built from heavy 1/4" plate steel to reduce flexing and fatigue

LATCH-OUT PREVENTION
Hose reels can be installed to prevent "latch-out" or locked reel syndrome

HI-FLOW SWIVEL
Load-free Hi-Flow swivel allows maximum product delivery. Swivel o-ring seals are supported by Teflon® backup rings for added durability

DURABLE FINISH
All Platinum Series reels are powder-coated grey for increased durability

Items in Platinum Double Arm Oil Hose Reels
Item
FOR USE ON HOSE SIZE MAXIMUM PSI DELIVERY HOSE HOSE STOP INLET WEIGHT
FOR USE ON OIL, ATF, A/F HOSE SIZE 1/2" X 75' MAXIMUM PSI 2,500 PSI DELIVERY HOSE TIM-4418-75S HOSE STOP TIM-131-4 INLET 1/2"(F) WEIGHT 100 LBS
FOR USE ON OIL, ATF, A/F HOSE SIZE 1/2" X 100' MAXIMUM PSI 2,500 PSI DELIVERY HOSE TIM-4418-100S HOSE STOP TIM-131-4 INLET 1/2"(F) WEIGHT 100 LBS
FOR USE ON OIL, ATF, A/F HOSE SIZE 3/4" X 50' MAXIMUM PSI 1,5000 PSI DELIVERY HOSE HOSE STOP INLET 3/4" WEIGHT 94 LBS
FOR USE ON OIL, ATF, A/F HOSE SIZE 1" X 50' MAXIMUM PSI 1,250 PSI DELIVERY HOSE HOSE STOP INLET 1" WEIGHT 116 LBS
