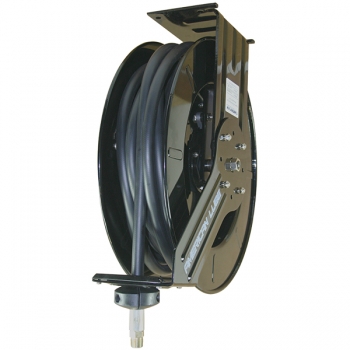

Advantage Plus Single Arm Oil Hose Reels
Advantage Plus Single Arm Oil Hose Reels
Click to enlarge

Advantage Plus Single Arm Oil Hose Reels

SLIDE-IN MOUNTING BRACKET
Optional slide-in bracket simplifies reel mounting. Easily allows one person to hang the reel in an overhead application.

MORE CHOICES
All reels are available in 65' versions.

LATCH SPRING
Heavy-duty latch spring is designed for years of trouble-free service, and can be replaced without removing or disassembling the reel.

ENCLOSED SPRING
Cartridge style spring motor is packed with grease and fully enclosed for extra safety. Springs are factory balanced for each size reel.

MOUNTING FLEXIBILITY
Multi-position guide arm is easily adjusted for ceiling, floor, wall, tank, or truck mounting.

STRENGTH BEADS
Reels are constructed with strength beads for added rigidity.

ROLLED EDGES
Hubs are constructed of heavy gauge steel with rolled edges for extra strength and maximum protection.

SELF-LUBRICATING
1" double supported steel axle with 1" self-lubricating precision bearings.

RIGID CONSTRUCTION
Base plate and support post are built from heavy 1/4" plate steel to reduce flexing and fatigue.

HI-FLOW SWIVEL
Load-free high-flow swivel allows maximum product delivery, and can be replaced without removing or disassembling the reel.

DURABLE FINISH
All reels are powder-coated black for increased durability.

Items in Advantage Plus Single Arm Oil Hose Reels
Item
FOR USE ON HOSE SIZE MAXIMUM PSI DELIVERY HOSE HOSE STOP INLET/ OUTLET WEIGHT
FOR USE ON AIR, WATER, WWS HOSE SIZE 1/2"(M) X 65' MAXIMUM PSI 300 PSI DELIVERY HOSE TIM-4208-65F HOSE STOP TIM-131-4 INLET/ OUTLET 1/2"(F) WEIGHT 64 LBS
FOR USE ON OIL, ATF, A/F HOSE SIZE 1/2"(M) X 25' MAXIMUM PSI 2,000 PSI DELIVERY HOSE TIM-4418-25S HOSE STOP TIM-131-4 INLET/ OUTLET 1/2"(F) WEIGHT 47 LBS
FOR USE ON OIL, ATF, A/F HOSE SIZE 1/2"(M) X 50' MAXIMUM PSI 2,000 PSI DELIVERY HOSE TIM-4418-50S HOSE STOP TIM-131-4 INLET/ OUTLET 1/2"(F) WEIGHT 55 LBS
