Fluid Couplers & Connectors

Used in oil evacuation systems for quick disconnect of diaphragm pump and suction discharge hoses.

Items in Fluid Couplers & Connectors
Item
THREAD SIZE MAXIMUM PSI TYPE

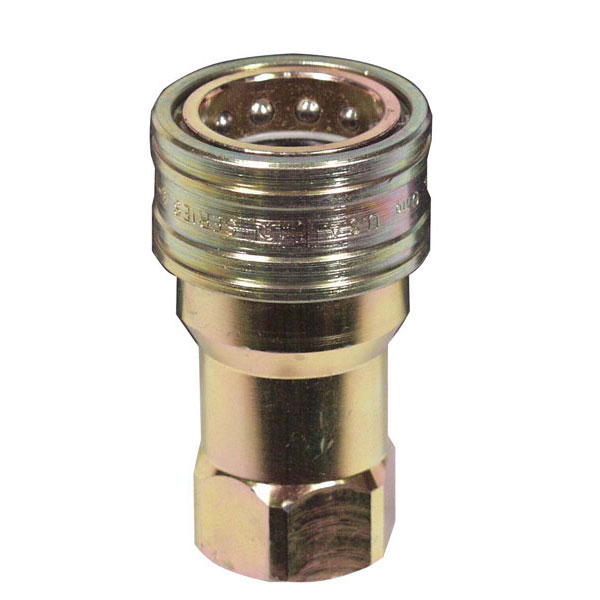

1/2" NPT (F) Fluid Coupler
Item TIM-178
THREAD SIZE 1/2"(F) MAXIMUM PSI 5,000 PSI TYPE FLUID COUPLER
1/2" NPT (F) Fluid Connector
Item TIM-179
THREAD SIZE 1/2"(F) MAXIMUM PSI 5,000 PSI TYPE FLUID CONNECTOR
3/4"-14 NPT (F) Quick Connect Coupler
Item TIM-180
THREAD SIZE 3/4"(F) MAXIMUM PSI 2,000 PSI TYPE FLUID COUPLER
3/4"-14 NPT (F) Quick Connector
Item TIM-181
THREAD SIZE 3/4"(F) MAXIMUM PSI 2,000 PSI TYPE FLUID CONNECTOR
1" NPT (F) Fluid Coupler
Item TIM-182
THREAD SIZE 1"(F) MAXIMUM PSI 4,000 PSI TYPE FLUID COUPLER
1" NPT (F) Fluid Connector
Item TIM-183
THREAD SIZE 1"(F) MAXIMUM PSI 4,000 PSI TYPE FLUID CONNECTOR
